GangPro-430 (X2S)

GangPro-430 (X2S)

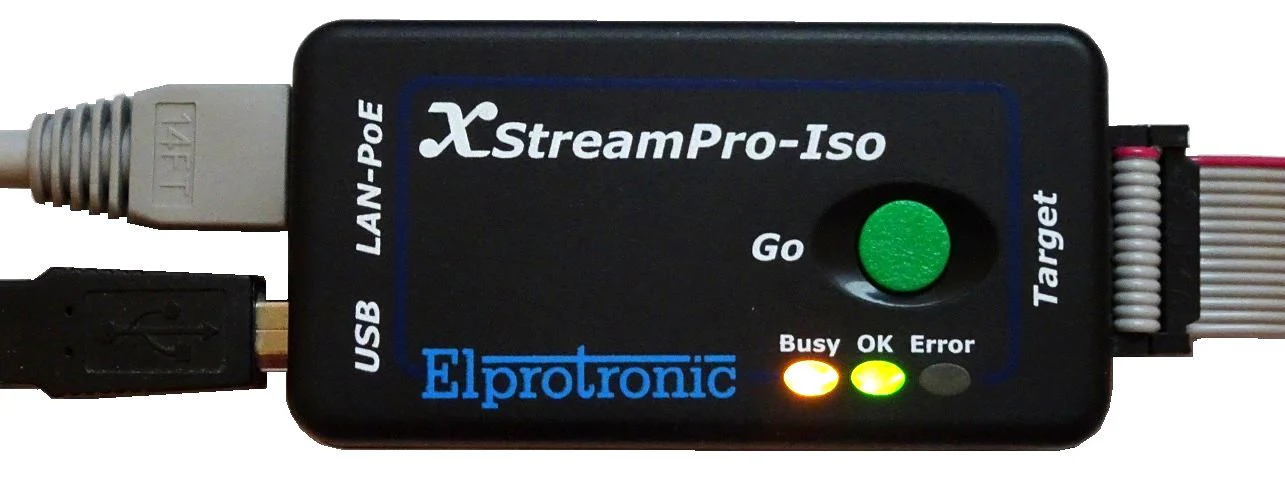

  • Embedded Flash programmer. XStreamPro-Iso hardware adapter runs with GangPro-430 and FlashPro-430 software.
  • Programs Texas Instruments MSP430.
  • Program up to SixĀ (6)Ā targets simultaneously.
  • Supports JTAG, SBW, and BSL communication.Ā
  • Programmable communication clockĀ up to 1 6 MHz, effective throughput up to 1 MBytes/s.
  • Standalone Mode in FlashPro mode (Auto Program with GO button from internal flash).
  • Ethernet and USBĀ connectivity.Ā Ā Ā
  • Power supply from adapter available, up to 200 mA.
  • Deep-SleepĀ mode current measurement fromĀ 5 nAĀ to 200 mA.Ā  Ā
  • Customizable Vcc from 1.2 to 4.0V.
  • Galvanic Isolation between computer and target (XStreamPro-Iso up to 1.0kV)
  • IAR EW430 debugging support.
  • Benchmarks
Software Package:
  • Easy to use GUI runs onĀ Windows(TM) XP, 7, 8, 10, and 11.
  • Shared library and Command-Line support (Debian Linux).
  • DLL and Command-Line support (Windows).
  • C++, C#, Python code examples provided.
  • Download installer for:Ā Windows,Ā Debian (x86-64), andĀ Debian (ARM)
Package contains:
  • XStreamPro-Iso 1.4 programming adapter (14-pin connector),
  • USB cable,
  • 14-pin MSP430-JTAG/SBW/BSL ribbon cable,

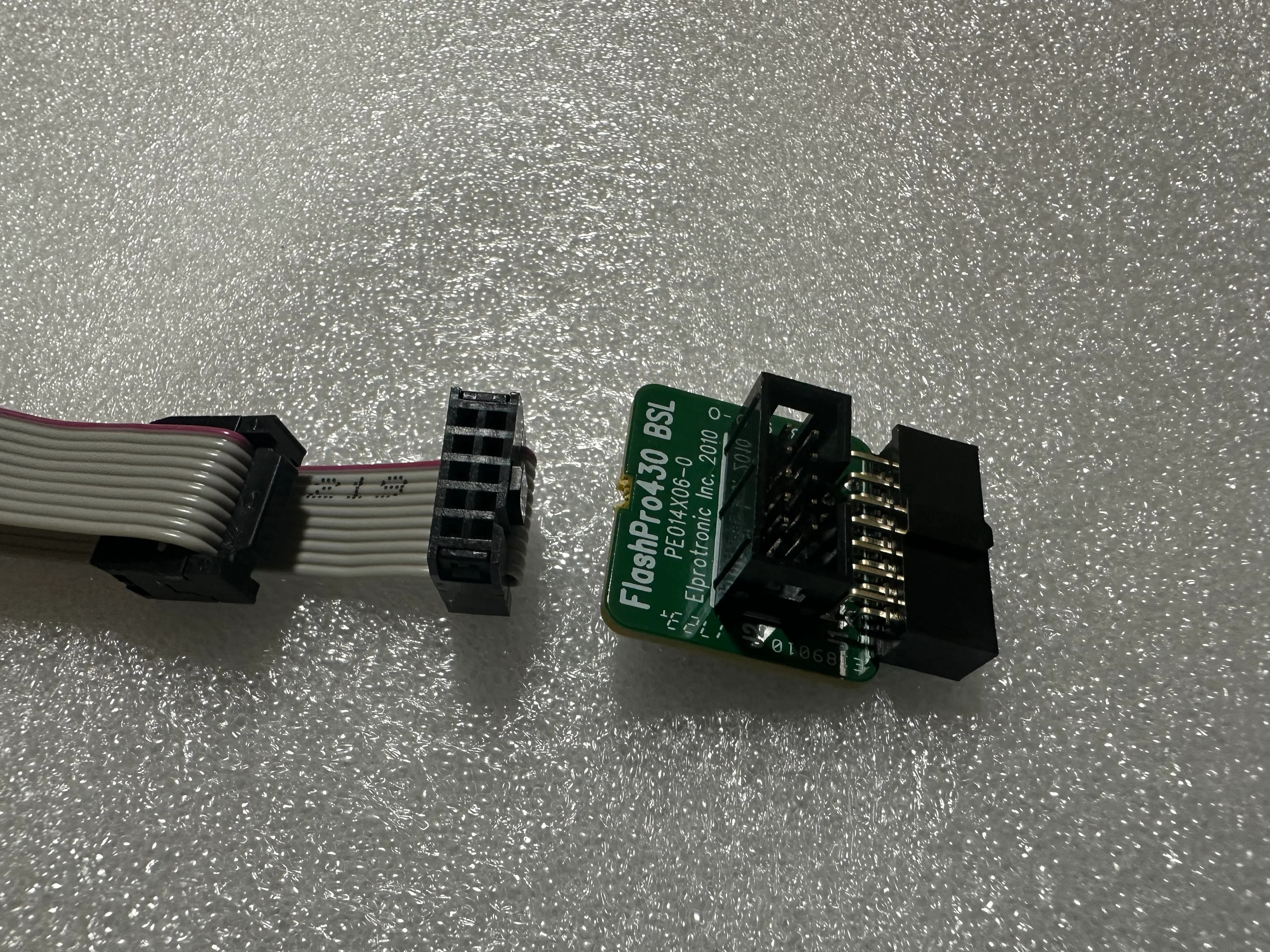

  • MSP430-BSL 14-pin to 10-pin adapter and ribbon cable,
  • One Year Warranty,
  • Unlimited time software usage license, no limit on number of programmed devices,
  • No code size limitations,
  • One Year free software updates,
  • Software Update License Renewal is optional (only needed for updates to run newer software version after one year).Ā  Already used software version will run indefinitely, with no need for license renewal.
  • *GangSplitter not included*
